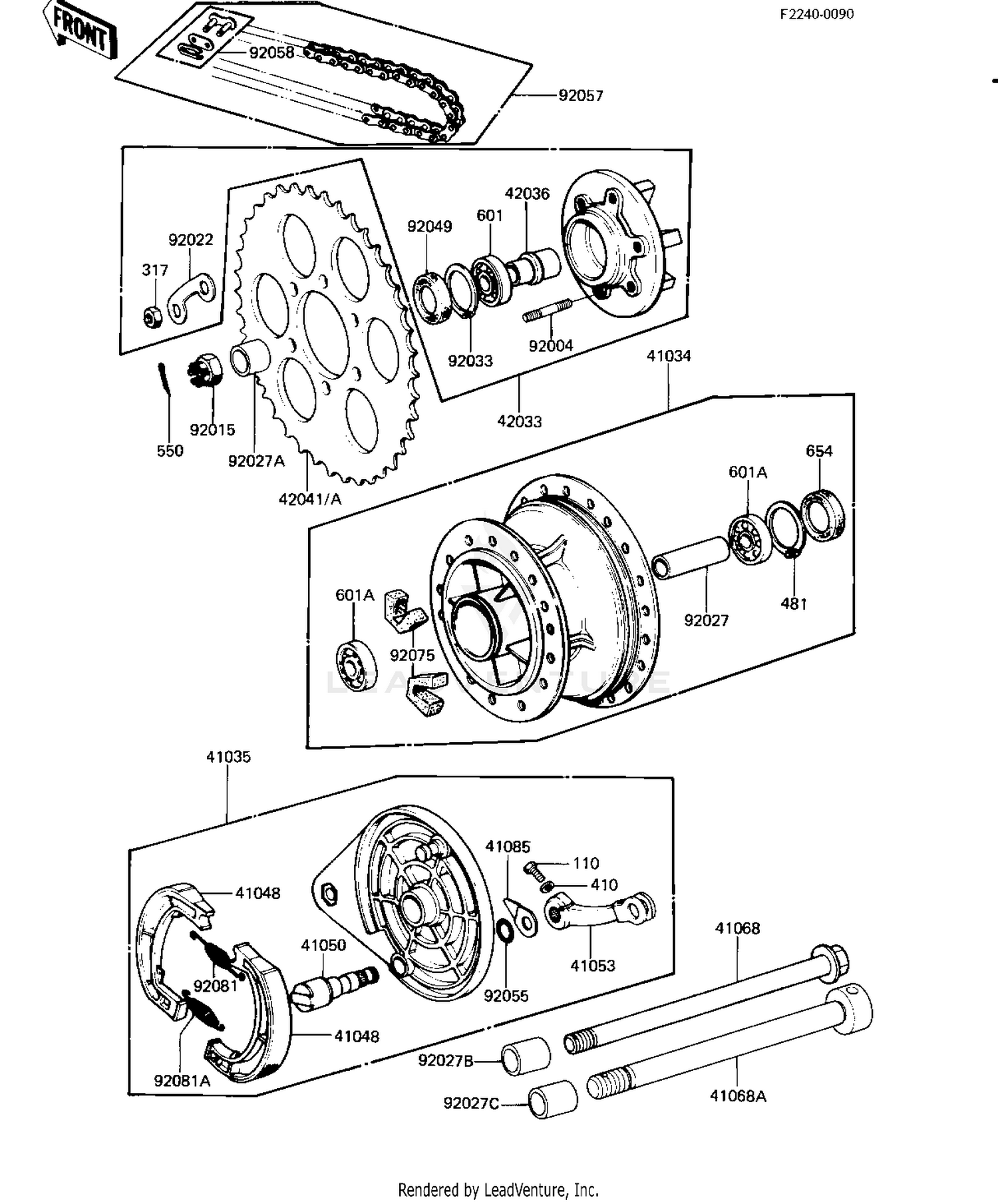

1980 Kawasaki KE125 REAR HUB/BRAKE/CHAIN ('82-'83 A9/A10) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#41034
DRUM-ASSY,RR BRK
41034-1025
|
$482.58 | ||
|
Available to order. Add to View Price |
|||
|
#41035
PANEL-ASSY-BRAKE,RR
41035-1036
Superseded by 41035-1356
|
$259.22 | ||
|
Available to order. Add to View Price |
|||
|
#41048
SHOE-BRAKE
42019-010
Superseded by 41048-1076
|
$35.27 | ||
|
Available to order. Add to View Price |
|||
|
#41050
CAM SHAFT,REAR BRAKE
42026-025
|
$17.68 | ||
|
Available to order. Add to View Price |
|||
|
#41053
LEVER,REAR BRAKE CAM
42029-030
|
$72.84 | ||
|
Available to order. Add to View Price |
|||
|
#41068
AXLE,RR,L=246
41068-1065
|
$50.07 | ||
|
Available to order. Add to View Price |
|||
|
#41068A
AXLE,RR,L=246 (Canada)
41068-1101
|
|||
|
Unavailable |
|||
|
#41085
INDICATOR,BK SHOE
41085-002
Superseded by 41085-008
|
$13.01 | ||
|
Available to order. Add to View Price |
|||
|
#42033
COUPLING ASSY,RR HUB
42008-031
|
$111.04 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,RR HUB COUPLNG
42036-018
|
$24.51 | ||
|
Available to order. Add to View Price |
|||
|
#42041
REAR SPROCKET.50T
42041-146
|
$89.74 | ||
|
Available to order. Add to View Price |
|||
|
#42041A
REAR SPROCKET,54T
42041-147
|
$78.84 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,8X17
92004-1015
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,CASTLE,14MM
42045-020
Superseded by 92015-1765
|
$9.21 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,SPROCKET LOCK
92088-019
|
$5.79 | ||
|
Available to order. Add to View Price |
|||
|
#92027
SPACER,RR HUB BEARING
42010-029
|
$20.52 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,RR BRAKE,L=22
92027-1253
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#92027B
COLLAR,RR BRAKE,L=25
92027-1254
|
$21.02 | ||
|
Available to order. Add to View Price |
|||
|
#92027C
COLLAR,15.2X28X25 (Canada)
92027-1480
|
|||
|
Unavailable |
|||
|
#92033
RING-SNAP,42MM
92033-1041
|
$5.79 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,26X42X8
92050-060
|
$16.75 | ||
|
Available to order. Add to View Price |
|||
|
#92055
0 RING,11MM
92055-004
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#92057
CHAIN,DRIVE,EK428SH-R
92057-030
Superseded by 92057-1341
|
$95.86 | ||
|
Available to order. Add to View Price |
|||
|
#92058
JOINT-CHAIN
92058-1015
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,REAR HUB SHOCK
42014-023
|
$16.45 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,BRAKE SHOE
92081-1766
|
$7.53 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,BRAKE SHOE
92081-1550
|
$8.90 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT-UPSET
112G0622
Superseded by 112BA0622
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#317
NUT-HEX-SMALL,8MM
317B0800
Superseded by 317AA0800
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL
410B0600
Superseded by 410AA0600
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#481
CIRCLIP-TYPE-C,35MM
481J3500
|
$1.92 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,3.0X25
550D3025
Superseded by 550AA3025
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING BALL #6004
601B6004
|
$12.13 | ||
|
Available to order. Add to View Price |
|||
|
#601A
BEARING-BALL,#6202C3
601B6202
|
$8.26 | ||
|
Available to order. Add to View Price |
|||
|
#654
SEAL-OIL,22X35X8
654A223508
Superseded by 92049-1348
|
$9.04 | ||
|
Available to order. Add to View Price |
|||
